Diversified Well Logging Equipment Sales
Equipment Sales
Diversified provides the following equipment for sale. Mudlogging units, Mudlogging sensor packages, gas detection, equipment, drilling sensors, and state of the art mud logging software and data acquisition system. Diversified currently supports equipment, sales to Trinidad, Mexico, Qatar, Oman. To get an updated quote on our hardware and software, integrated packages, please reach out below.

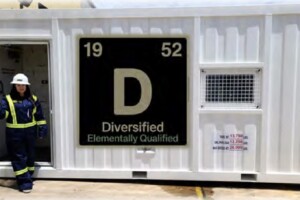

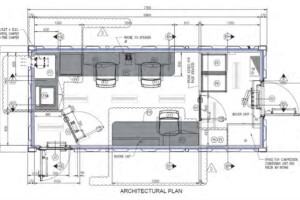

Mud Logging UnitGet a Quote
- A variety of cabin types available ranging from lightweight 20' aluminium Heli-Lift units to 20, 24 & 27ft A0 fire rated units up to 27' A60 DNV 2.7.1 & 2.7.2
- Offshore units. Custom made units are available on request.
- High quality components and features built into standard designs. Manufactured at a variety of locations around the globe.
- Robust, durable and spacious.
- Combined "LWD/DD/SLS" units available.

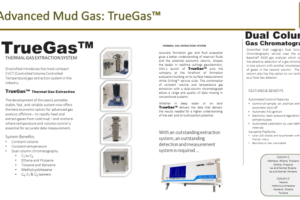

TrueGas™️Get a Quote

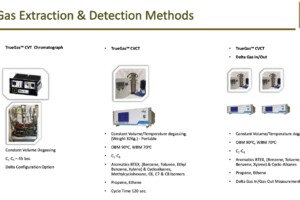

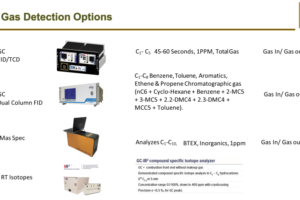

Diversified introduces the most compact CVCT (Controlled Volume Controlled Temperature) gas extraction system in the industry.
The development of this easily portable, stable, fast, and reliable system now offers the best economic option for advanced gas analysis offshore—to rapidly heat and extract gases from cold mud—and onshore where temperatures and volume control is essential for accurate data measurement.
System Benefits:
- Constant volume
- Constant temperature
- Dual colum chromatography
- C₂ to C₈
- Ethene and Propane
- Toluene and Benzene
- Methylcyclohexane
- C₆, C₇, & C₈ Isomers
Origin™️ Mudlogging SuiteGet a Quote

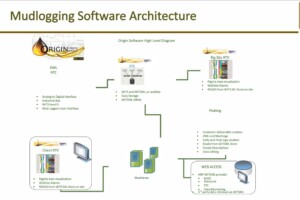

The Origin Logging Suite from Diversified takes its drilling operation software platform to the next level. Designed as a universal system for global use, Origin uses integrated proprietary and best-in-class software packages for ease of operation within Diversified and between client and thirdparty companies. With its stable core programming Origin is free to expand as new applications become available.
Diversified RTC
- Analog to Digital interface
- Industrial Bus
- WITS level 0
- Mudloggers User Interface
RTE
- WITS and WITSML on wellsite
- Data Storage
- WITSML offsite

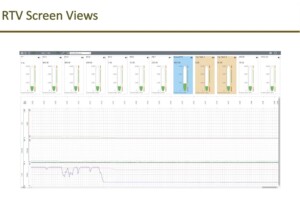

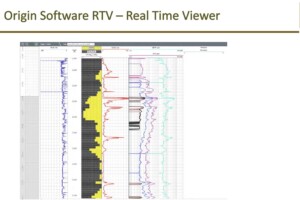

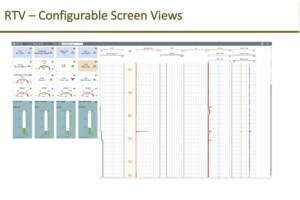

Rig Site RTV
- Rigsite data visualization
- Wellsite alarms
- READS from WITSML Store on site
Client RTV
- Rigsite data visualization
- Wellsite alarms
- READS from WITSML Store on site

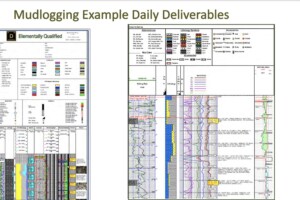

Plotting
- Customer deliverable creation
- HML and Mug Logs
- Daily and Final logs creation
- Reads from WITSML store
- Create Descriptions
- Data Editing
Web Access
- ANY WITSML provider
- KOGT
- PetroLink
- ETC
- Data Monitoring
- 3rd party data retrieval via WITSML
